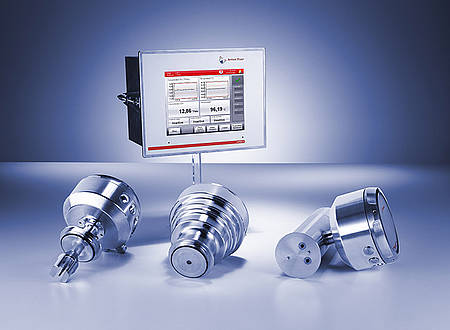

Extract/Original Extract/Plato Monitor
Промишлени уреди
Inline extract measurement
The Extract/Original Extract/Plato Monitor is used for highly accurate inline extract measurements in the lauter tub, at the brewing kettle, after the wort cooler, or in the final beer. Decades of practical experience have resulted in the development of several powerful systems for the measurement of cold and hot wort, and beer. Depending on the application, the optimal sensing technology can be selected for the best possible outcome.
Three measurement technologies to fit your requirements
Density
L-Dens 7400/7500
- For extract and Plato monitoring
- Highest accuracy
- Suitable for fiscal measurements
Sound
L-Sonic 5100
- For extract, Plato, and original extract monitoring
- Best value for applications requiring modest accuracy
- EHEDG-certified
Refractive index
L-Rix 510/520
- For extract and Plato monitoring
- For pulpy and viscous samples
- EHEDG-certified
Durable – without operating costs
- Precise and drift-free online extract measurement, even with bubble formation or coating build-up
- All Extract/Plato Monitors are maintenance-free, ensuring a long working life
- Accessories for automated cleaning procedures are available
Versatile installation range
Both main line and tank installation are possible.
Cost-optimized monitoring and control with integrated HMI
The new, integrated Pico 3000 process instrumentation controller combines configurability and diagnostics with a simple user interface. Built-in control functions and flexible PLC connectivity give you full control of your product and process specifications at any time.
Improved process capability
The powerful data acquisition and visualization software (client-server) Davis 5 enables you to save all data and alarms, provides statistical process control and graphical trend analysis, and allows product adjustments. Password-protected access to all measuring systems is possible from various locations, while providing powerful reporting and integration with your corporate quality management system
| Extract/Plato Monitor | Based on density | Based on sound velocity | Based on refractive index |
| Range | 0 °Plato to 70 °Plato | 0 °Plato to 35 °Plato | L-Rix 510: 0 °Plato to 100°Plato L-Rix 520: 0 °Plato to 15 °Plato |
| Accuracy | 0.025 °Plato | 0.06 °Plato | L-Rix 510: 0.1 °Plato L-Rix 520: 0.05 °Plato |
| Measuring temperature | 0 °C to +100 °C | -3 °C to +105 °C | L-Rix 510: 0 °C to +100 °C L-Rix 520: +3 °C to +25 °C |
